Herkunftsort:
China
Markenname:
carterberg
Zertifizierung:
IATF16949
Modellnummer:
CB-SSSP-VVS

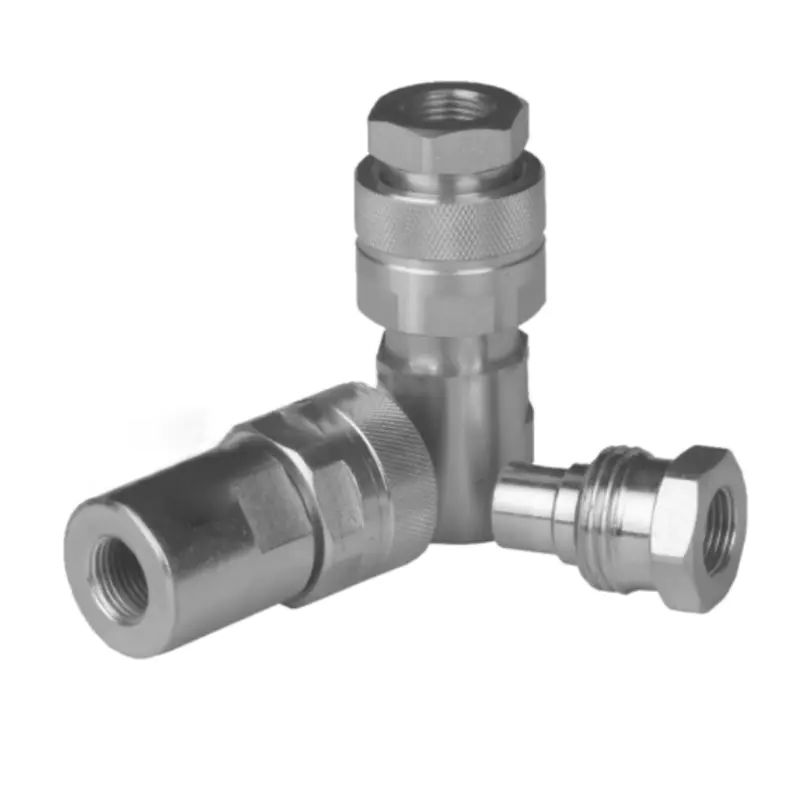

CB-VVS Steel thread locked type chrome plating hydraulic quick coupling
The CB-VVS Steel thread locked type chrome plating hydraulic quick coupling is a type of hydraulic coupling used in hydraulic systems. These couplings are designed to quickly connect and disconnect hydraulic lines, and they are commonly used in construction, manufacturing, and other industrial applications.
The thread-locked type ensures a secure and tight connection, which helps prevent leaks and ensure the proper flow of hydraulic fluids. The chrome plating on the coupling provides protection against rust and corrosion, which helps extend the life of the coupling.
These couplings are typically made from high-strength steel, which allows them to withstand high pressures and rugged industrial environments. The design of the coupling also ensures that it can be easily connected and disconnected, which makes it a convenient and practical solution for applications where frequent connections and disconnections are required.
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 1/4" | 5000 | 3 | -20℃~+80℃ | NBR |
| 3/8" | 4000 | 6 | ||
| 1/2" | 4000 | 12 | ||
| 3/4" | 3000 | 28 | ||
| 1" | 3000 | 50 | ||
| 1-1/4" | 3000 | 88 | ||
| 1-1/2" | 2000 | 220 | ||
| 2" | 2000 | 224 |
| Body Size | PARTNO. | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T |
| 1/4" | CB-SP2S-VVS | 68 | 68 | 43 | 18 | 30 | 14.2 | 22 | 25 | G1/4 NPT1/4 |
| 3/8" | CB-SP3S-VVS | 75.5 | 75.5 | 48 | 21.5 | 39.5 | 18.9 | 30 | 32 | G3/8 NPT3/8 |
| 1/2" | CB-SP4S-VVS | 86.5 | 86.5 | 53 | 23 | 44 | 20.5 | 34 | 34 | G1/2 NPT1/2 |
| 3/4" | CB-SP6S-VVS | 105.5 | 105.5 | 63 | 30.5 | 54 | 27.9 | 41 | 46 | G3/4 NPT3/4 |
| 1" | CB-SP8S-VVS | 123 | 123 | 72 | 34 | 59 | 31.3 | 50 | 50 | G1 NPT1 |
| 1 1/4" | CB-SP10S-VVS | 152.5 | 152.5 | 86 | 43 | 80 | 43.9 | 65 | 65 | G1 1/4 NPT1 1/4 |
| 1 1/2" | CB-SP12S-VVS | 172 | 172 | 95 | 45 | 98 | 53.4 | 75 | 80 | G1 1/2 NPT1 1/2 |
| 2" | CB-SP16S-VVS | 206.5 | 206.5 | 118 | 52 | 129 | 81.8 | 100 | 110 | G2 NPT2 |
