Herkunftsort:
China
Markenname:
carterberg
Zertifizierung:
IATF16949
Modellnummer:
CB-SSSP-TNV

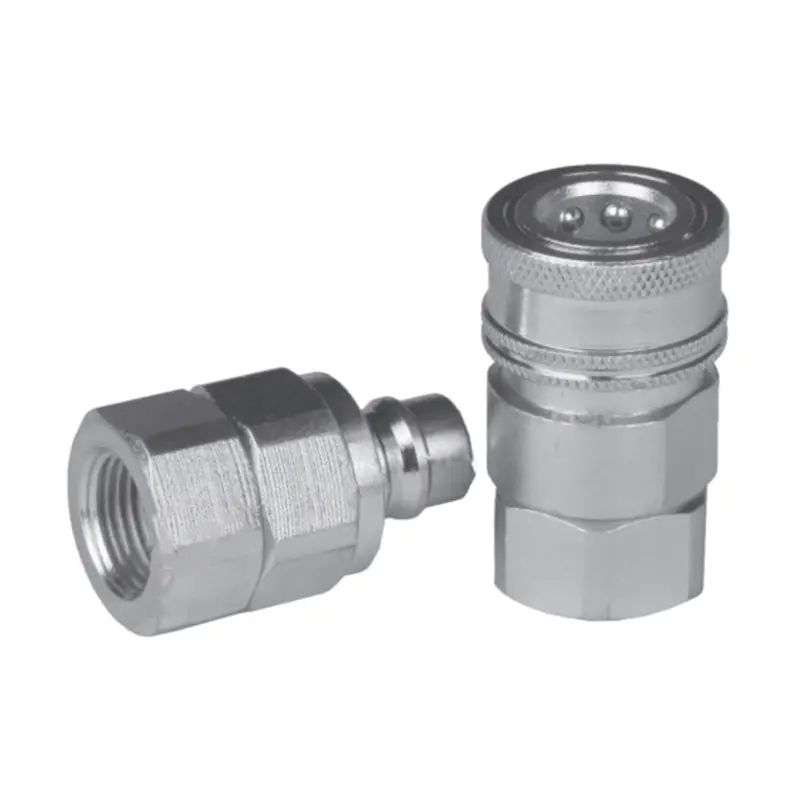

CB-TNV Close type hydraulic quick coupling
● Poppet valves available to prevent uncoupled leakage.
● Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
● Critical parts are hardened for durability.
● Dependable ball-locking mechanism holds the mating halves together.
● Socket and plug are precision machined from solid bar stock.
● Compatible with F ASTER TNV Series.
The CB-TNV Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 3/8" | 4000 | 6 | -20℃~+100℃ | NBR |
| 1/2" | 3000 | 12 | -20℃~+100℃ | NBR |
Female (Socket)
| Body Size | PARTNO. | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T |
| 3/8" | CB-SP3S-TNV | 82 | 50.5 | 49 | 18.5 | 30.5 | 12.8 | 25.4 | 25.4 | G3/8 NPT3/8 |
| 1/2" | CB-SP4S-TNV | 94 | 57 | 54.5 | 18.5 | 35 | 16 | 30.2 | 30.2 | G1/2 NPT1/2 |
