Name: CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-205
Availability: InStock

Zu Hause > produits > hydraulische schnelle Koppelungen >

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

Herkunftsort:

China

Markenname:

carterberg

Zertifizierung:

IATF16949

Modellnummer:

CB-205

Kontakt mit uns

Bitte um ein Angebot

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

Produktdetails

Typ:

ISO 7241A

Material:

Zinkplattierte Stahl, rostfreier Stahl

Größe:

Ein Viertel Fuß, ein Viertel Fuß.

Bewertungsdruck:

bis 2900 PSI ((20 MPa)

Versiegelungsmittel:

NBR (Standard), Viton, EPDM (optional)

Verbindung:

Stecker und Sockel

Ventile:

Ball / Puppet

Austausch:

Kompatibel mit Parker 6600, Faster ANV, Stucchi A-Serie usw.

Zahlungs- und Versandbedingungen

Min Bestellmenge

Verhandlung

Preis

Verhandlungsfähig

Verpackung Informationen

Karton

Lieferzeit

7-20 Arbeitstage

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union

Versorgungsmaterial-Fähigkeit

5000 ~ 20000 PC/Monat

Verwandte Produkte

CB-Q/ZB275 Thread-Locked Hydraulic Quick Coupling – Manual Push-Pull for Low-Pressure Applications

Beste Preis

70MPa Steel Hydraulic Quick Coupling for Ultra-High Pressure Equipment (CB-TQ)

Beste Preis

CB-YM Coal Mine Quick Couplings - Chrome Plated Carbon Steel - Dn10-Dn52 Threads

Beste Preis

High-Pressure 316 Stain Steel CB-QC Quick Connector FKM Sealing Swagelok Compatible

Beste Preis

Kontakt mit uns

86-021-37214610

Kontaktieren Sie uns jetzt

Produktbeschreibung

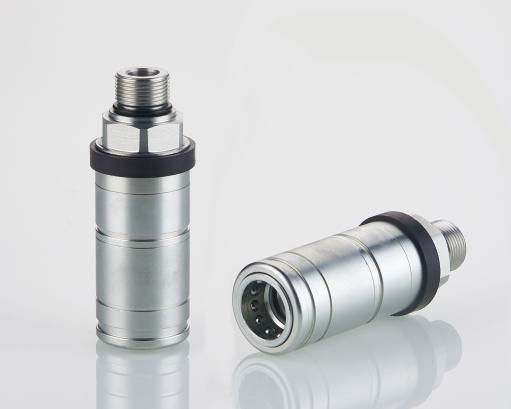

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

The CB-205 Series hydraulic quick couplings are engineered for heavy-duty applications in construction, forestry, and hydraulic machinery. Featuring a double-acting sleeve for one-handed push-to-connect operation, they ensure efficient coupling even in clamp or bulkhead mounts. Equipped with poppet valves to prevent uncoupled leakage, these couplings maintain automatic flow within rated pressure for uninterrupted performance. Critical hardened components enhance durability, while ISO5675 compliance guarantees reliability. Compatible with PARKER 4250 and FASTER CPV-CNV Series, they offer seamless integration into existing systems. Ideal for demanding industrial environments, these couplings prioritize safety, ease of use, and robust performance.

Technical Specifications

BODY SIZE	Rated Pressure (PSI)	Rated Flow (GPM)	Temperature range(std seals)	Standard seal material
1/2"	3000	12	-20℃~+80℃	NBR

Dimensional Overview

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry 0

Body Size	PARTNO.	LS	Φ D	HS	A	T
1/2"	CB-205	111	38	32	23.8	BSP1/2 NP T1/2
